Product Details
Should the bulk xlpe cross link pe flexible electric wire made in China caters to your requirement, welcome to get the datasheet with us. As one of the leading manufacturers and suppliers in China, we also offer the customized service.

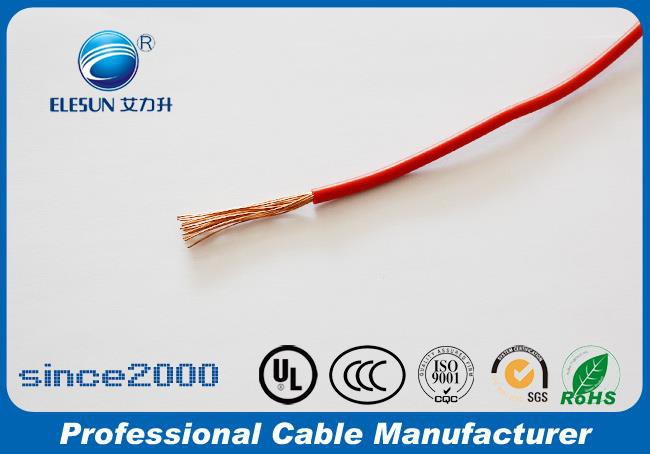

450/750V Copper Conductor XLPE  Insulation Electric Wire

Description:

Conductor: Bare Copper

Insulation: XLPE

Color:Black,White,Red,Yellow,Blue,and etc.,

Voltage Rating:450V/750V

Temperature Rating:90℃


Typical Application:

For Building Wiring, Installation ,Equipment and Instrument



Best Feature XLPE  Insulation:

XLPE is the abbreviation of the English name of crosslinked polyethylene, polyethylene is a kind of linear molecular structure. The process of crosslinking polyethylene makes it a net structure. This structure has a strong ability to resist deformation even at high temperatures.

XLPE cable material is a kind of polyethylene containing organic peroxide. Under the condition of high temperature and high pressure and inert gas, the peroxide is chemically reacted with polyethylene, which makes thermoplastic polyethylene into thermosetting polyethylene, namely XLPE.

XLPE cable has excellent electrical performance. The dielectric loss is smaller than the paper insulation and PVC insulation, and the capacitance of the XLPE cable is also small. Therefore, the charging current and the ground fault current can be reduced in the non active star grounding system.

Easy to lay is another advantage of XLPE cable. XLPE cable has a smaller bending radius, which is lighter than other similar cables and has a simpler terminal handling. Since the XLPE cable is not oil, it is not necessary to consider the route when laying the XLPE cable, and there is no reason why the cable can not be laid.

Excellent aging resistance and super heat resistant deformation determine that the XLPE cable can allow large current to pass through the normal operating temperature (90℃ ), short time fault (130 ℃) and short circuit (250 ℃).



Standard Packing:

250m/Roll



Product Structure

450/750V Copper Conductor XLPE Insulation  Electric   Wire

Nom.   Cross Section(mm²)

Conductor   Structure(mm)

Conductor   O.D.(mm)

Thickness   of Insulation(mm)

O.D.   Of Jacket(mm)

0.5

16/0.25

1/0.80

0.7

2.20

0.75

24/0.20

1/0.97

0.7

2.37

1

32/0.20

1/1.13

0.7

2.53

1.5

30/0.25

1/1.37

0.7

2.78

2.5

49/0.25

1/1.76

0.8

3.36

4

56/0.30

1/2.24

0.8

3.85
