Product Details
Should the bulk 300v500v pvc insulation computer cable made in China caters to your requirement, welcome to get the datasheet with us. As one of the leading manufacturers and suppliers in China, we also offer the customized service.

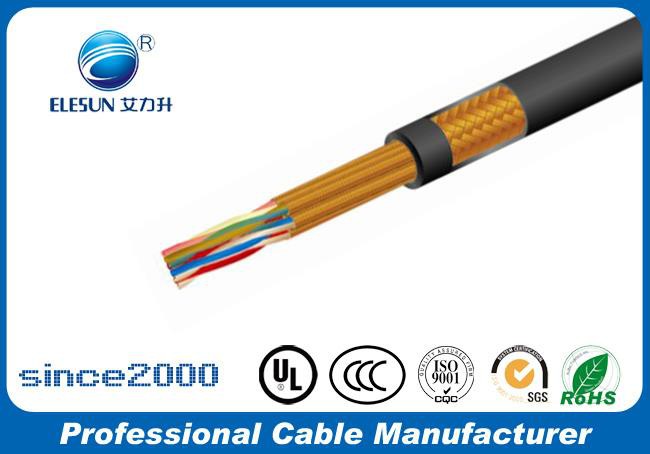

300/500V PVC insulated computer cable

Description:

Conductor:copper

Insulation:PVC

Shielding:copper wire braiding shielding

Type : Unarmoured: collectively screened and individually & collectively screened

Cores:1*2cores,2*2cores,....24*2cores

Individual pair screen (optional):

A:Aluminium/ polyester tape, metallic side down, in contact with minimum 0.5mm² tinned copper drain wire

B:Polyester isolating tapes numbered for identification

Sheath:PVC

Voltage Rating:300/500V

Standard: BS5308-1986



Application:

PVC insulation computer cable is designed mainly to connect communication systems and electrical instrumentation in and around process plants in the oil, petro-chemical, gas and other industries, these cable are not for direct connection to the public mains supply.

Product name



Reference Cable Diameter

Conductor structure(pairs)

0.75  mm²

1.0  mm²

1.5  mm²

collectively screened

 Individually screened

Individually+collectively   screened

collectively screened

Individually screened

Individually+collectively   screened

collectively screened

Individually screened

Individually+collectively   screened

1*2

9.1

9.1

-

9.9

9.9

--

10.5

10.5

--

2*2

12.9

13.7

14.5

13.8

14.5

15.6

15.5

16.4

17.0

3*2

13.8

14.6

15.3

14.6

15.5

16.1

16.5

18.0

18.7

4*2

15.0

16.1

16.7

15.9

17.3

18.2

18.1

19.8

20.7

5*2

16.5

18.3

19.1

17.4

18.9

20.1

20.1

21.8

22.6

6*2

18.4

19..9

20.7

19.6

21.0

21.8

20.5

24.2

25.1

7*2

18.4

19.9

20.7

19.6

21.0

21.8

20.5

24.2

25.1

8*2

19.8

21.6

22.4

21.0

22.8

24.0

23.2

26.3

27.2

9*2

20.5

23.6

25.0

22.3

25.4

26.5

25.2

28.5

29.2

10*2

23.5

25.9

26.7

25.2

26.6

28.1

26.5

31.1

31.9

12*2

24.5

26.8

27.5

26.0

27.7

29.0

27.5

32.2

32.9

14*2

25.7

28.2

29.0

27.3

28.9

30.6

29.5

34.2

34.9

16*2

27.0

29.8

30.5

28.8

30.8

32.2

31.5

36.1

36.8

19*2

28.5

31.5

32.2

30.3

33.1

34.2

34.0

38.2

38.9

24*2

33.2

37.3

38.0

35.6

38.5

40.1

38.8

45.5

46.1
